Core Features
- Six cutting heads and up to fifteen slitters for simultaneous, high-precision multi-lane production
- Built-in PC with VOREY AI software for automated setup, file optimization, and job management
- CCD camera for precise registration and auto depth control
- Automatic tension control, blade distance adjustment, and waste removal system
- Integrated lamination and rewinder modules for continuous production
- Supports PLT, DXF, and PDF file formats for seamless workflow integration
- Compact industrial design with fast job changeover and minimal downtime
Benefits
- Increased efficiency: automated calibration and job switching reduce setup time
- Superior precision: CCD vision and auto depth control ensure consistent cutting accuracy
- Lower operational costs: minimal manual intervention and continuous operation boost productivity
- Enhanced flexibility: supports both short-run and long-run label production
- User-friendly operation: intuitive control software simplifies workflow management
- Compact footprint: maximizes space utilization without sacrificing performance
Ideal Applications
- Digital label finishing and short-run production
- Industrial and commercial label cutting
- Product, packaging, and sticker labels
- Roll-to-roll and sheet-fed finishing workflows
- Custom and variable design labels requiring precise contour cutting
Operational Advantages

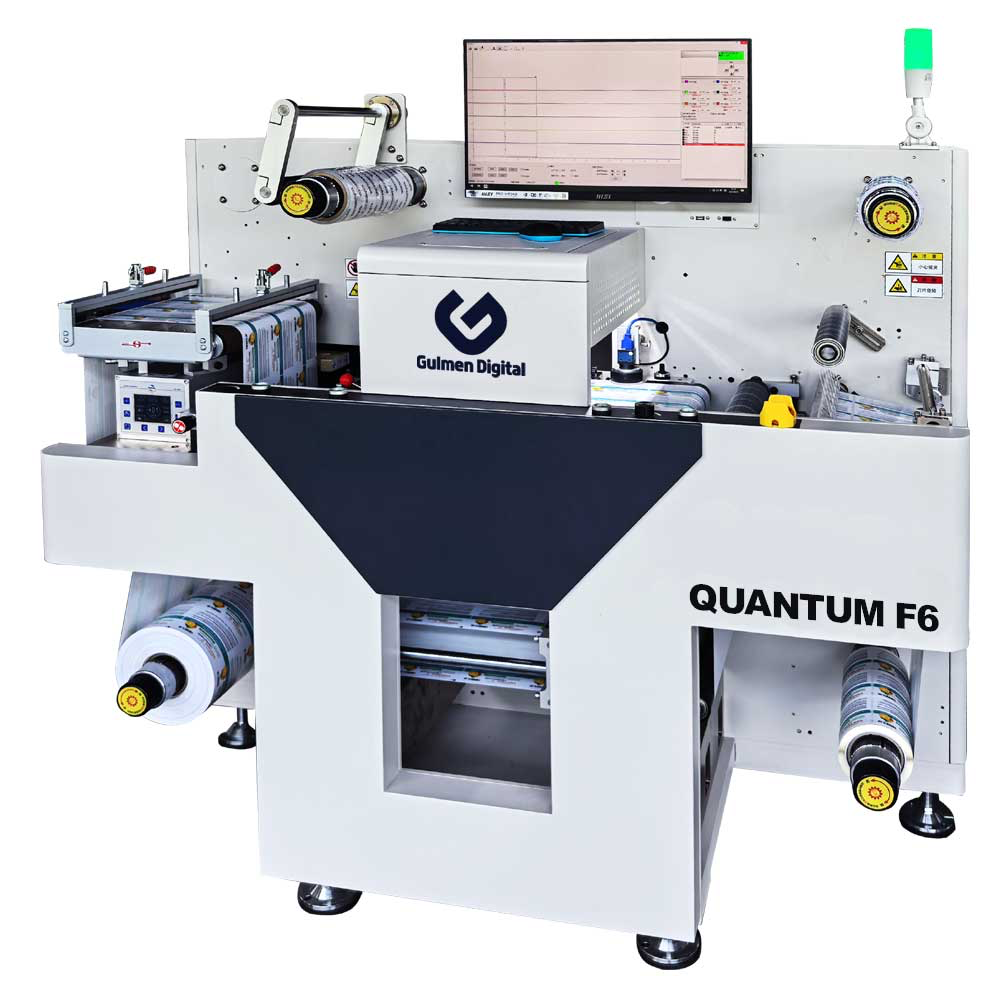

The GD Quantum F6 bridges the gap between flexibility and industrial reliability. By automating key finishing processes and minimizing manual setup, it empowers print businesses to handle complex, time-sensitive projects with confidence.
Whether producing premium product labels, durable industrial stickers, or small-batch custom runs, the F6 delivers accuracy, repeatability, and faster turnaround—all from a compact, user-friendly platform.
Specifications
Manufacturer | Gulmen Digital |
Model | GD Quantum F6 (converted from AuraCut A6) |
Manufacturer (replaced) | Gulmen Digital |
Cut Head Quantity | 6 sets |
Slitter Quantity | 7 (max 15) |
Rewinder Quantity | 1 set (3″) |
Max Roll Diameter | 500 mm (specified in source) |
Cut Precision | 0.1 mm (repeat) |
Max Label Width | 100–350 mm |
Cut Track (Web Guide / Registration) | 330 mm (listed as “Cut track”) |
Machine Dimensions (L×W×H) | 1540 × 1005 × 1636 mm |
Machine Weight | Approx. 990 kg |
Power Supply / Consumption | 220 VAC, 2000 W |
Built-in PC / Software | Built-in PC; VOREY AI software v4.0 (file import, auto-optimize, vision functions) |
Supported File Formats | PLT, DXF, PDF |
Data Transfer / Interface | Digital input / data transfer port (unspecified type in source) |
Vision / Registration | CCD camera / blank detection; position speed 0.03 s |
Blade Depth Adjustment | 0.1 mm (repeat value given) |
Blade Dropping Mode | Listed in source (mode described but specific name not clear) |
Media Width | 500 mm (listed alongside roll / media values) |
Max Label Length | Not explicitly clear in PDF extract |
Other Integrated Systems / Options | Auto tension control; auto adjust blade distance; auto job change (digital number / QR code); auto optimize file & set drop point; waste removal system (with heating); lamination system; one rewinder; two counters (jobs and meters); web guide (+25 mm range) |
Notes / Caveats | Values were transcribed from the provided AuraCut A6 spec PDF. Some fields in the original document are abbreviated or ambiguous; where the spec was unclear, the table notes that the value is unspecified or taken literally from the source. See original PDF for full context. |
